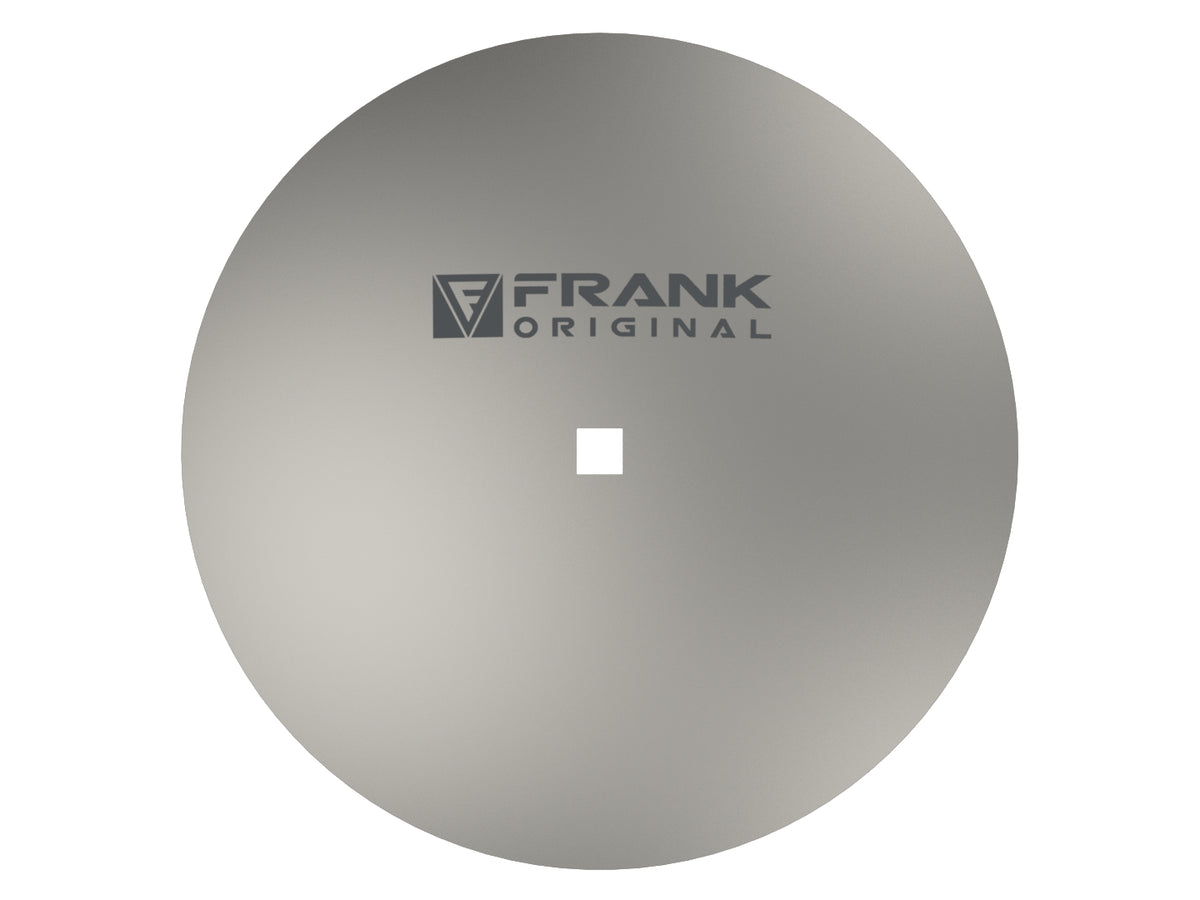

Concave disc for Universal | smooth
Regular price
€52,90
incl. VAT
Couldn't load pickup availability
Log in as a business customer to see prices
To see prices, you must register as a business customer.
Follow this link.
Suitable for
- Original Number 909191200701, 90 912
- Manufacturer Universal
Technical information
- FRANK-No.. 909191200701
- Version hardened/tempered, lacquered

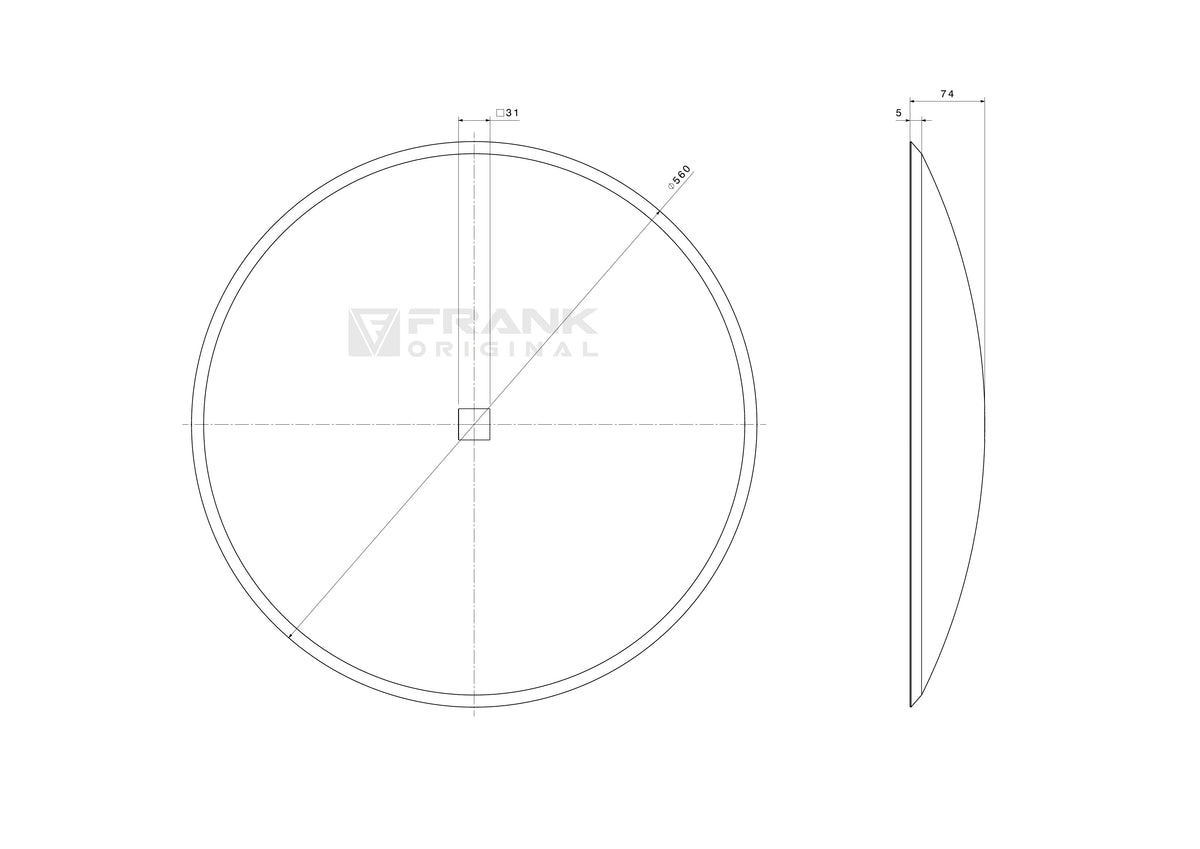

- Dimensions Ø 560 x 5 mm
- Additional Information □ 31 x 30 mm
- Weight 10.2 kg
FRANK replacement parts are not original parts. Manufacturer designations and part numbers are used for comparison purposes only.
Further information
-
Installation instructions
Please do not use impact wrenches for tightening. Use a calibrated torque wrench and adhere to the specified torque values . The use of impact wrenches will void the warranty.
-
